Description

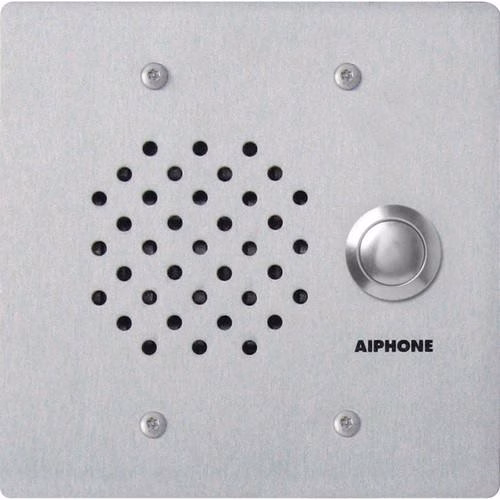

Aiphone LE SSA Door Station

Stainless Steel Door Station – The Aiphone LE SSA Door Station is a vandal proof and weather resistant sub station. It’s constructed with 12 gauge stainless, a baffle protected speaker and limited stop call button. The unit either flush mount into a 2-gang box, or surface mount with the SBX-2G. The LE-SS/A includes tamper proof screws and a tool for installation.

This is a door station only and requires:

• Any of the master stations- LEM-1DL or LEM-1DLC .
• Power Supply- PT-1210N

If you want a complete set then you can get the LEM-1DLS

Specification

Power Source: 12~16V AC – Use PT-1210N 12~24V DC, 200mA.
Communication: When called by tone, press TALK to reply, press door release button to release door and press OFF for standby.
Door Release: Contact rating 30V AC or DC, 1A.
Wiring: Door/Sub to master: 2-cond., overall shield.
Distance: Door/Sub to farthest master: 650’(22AWG) 1,600’(18AWG).
Wire Type: Aiphone #822202 or Aiphone# 821802.

Warranty
Aiphone warrants its products to be free from defects in material and workmanship under normal use and service for a period of one, two, or three years (depending on the product) after installation to the ultimate user. Proof-of-purchase is required to verify warranty period, otherwise warranty will be based on product lot code.
