Aiphone LE DA Door Station

$108.00

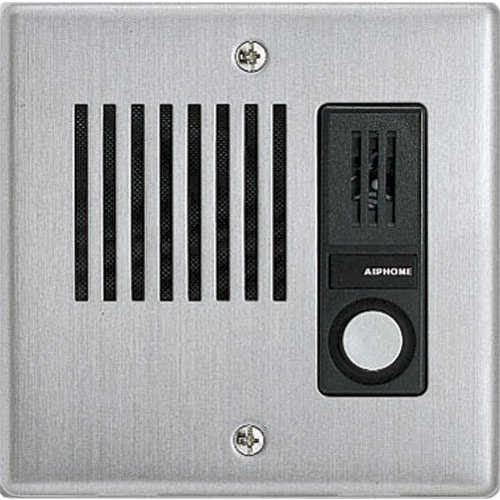

The LE-DA is a weather resistant, flush mount door station with a stainless steel faceplate. It flush mounts to a two-gang electric box or surface mounts using the SBX-2G.

EAN: 0033587119964 , 0790143124946
UNSPSC Code: 46171619
ASIN: B000HQ5M0K

18 in stock

Add to Wishlist
Add to Wishlist
SKU: LE DA Category: Tags: , ,

Description

Aiphone LE DA Door Station

Flush Mount Door Station – The Aiphone LE DA Door Station is a weather resistant, flush mount door station with a stainless steel faceplate. It flush mounts to a two-gang electric box or surface mounts using the SBX-2G. The LE-DA provides communication and call-in.

This is a door station only and requires:

  • Any of the master stations- LEM-1DL or LEM-1DLC .
  • Power Supply- PT-1210N

If you want a complete set then you can get the LEM-1DLS

Specification

Power Source: 12~16V AC – Use PT-1210N 12~24V DC, 200mA.
Communication: When called by tone, press TALK to reply, press door release button to release door and press OFF for standby.
Door Release: Contact rating 30V AC or DC, 1A.
Wiring: Door/Sub to master: 2-cond., overall shield.
Distance: Door/Sub to farthest master: 650’(22AWG) 1,600’(18AWG).
Wire Type: Aiphone #822202 or Aiphone# 821802.

Warranty

Aiphone warrants its products to be free from defects in material and workmanship under normal use and service for a period of one, two, or three years (depending on the product) after installation to the ultimate user. Proof-of-purchase is required to verify warranty period, otherwise warranty will be based on product lot code.

Additional information

Weight 2 lbs
