Description

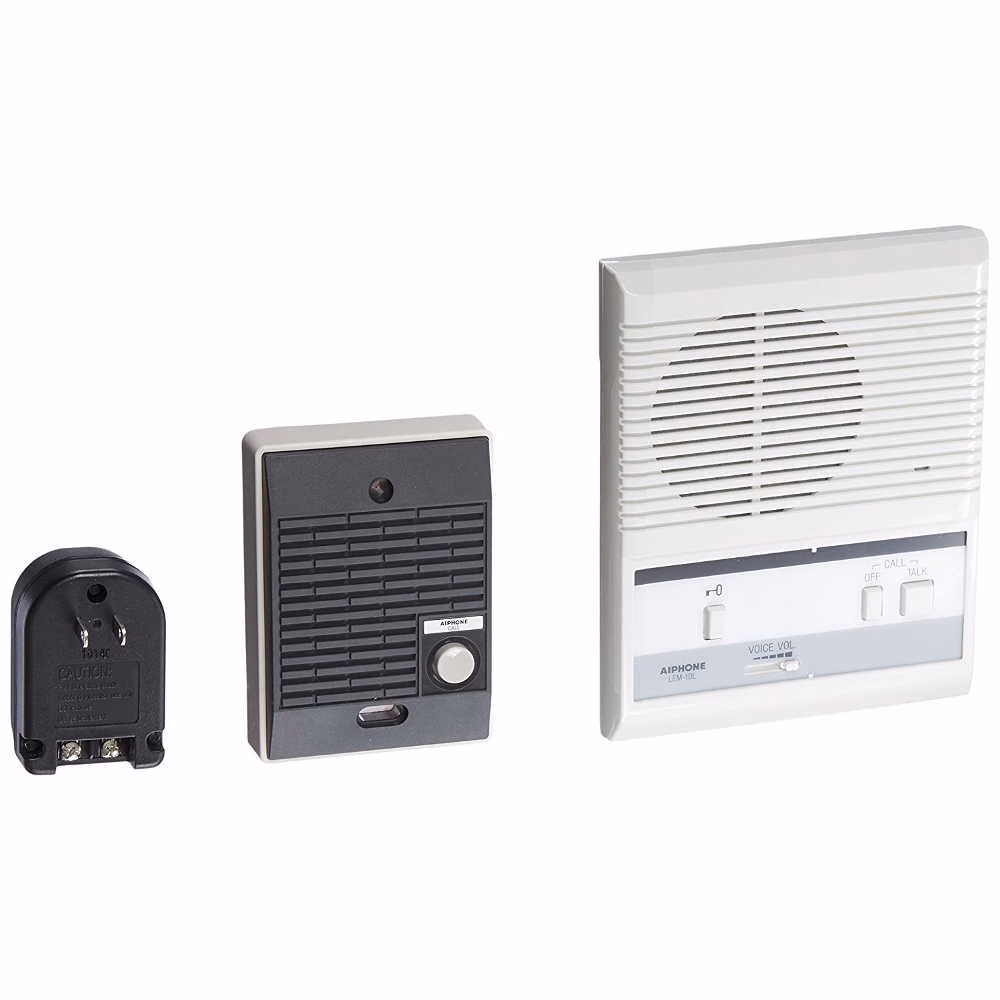

Aiphone LEM 1DLS Starter Kit

Aiphone LEM 1DLS Starter Kit contains a complete intercom system excluding electric strike (sold separately).Easy installation 2 wire system and low cost makes this intercom a must have for added security.

This is a starter kit comes complete and includes:

• LEM-1DL master single call surface/desk mount master station with built in door release relay.
• LE-D door station Surface Mount Door Station – The LE-D is a surface mount, ABS plastic door station. It is weather resistant and mounts to a single gang electric box. The LE-D provides communication and call-in.
• PT-1210N- 12V AC 110V AC input Plug-in transformer. UL listed.

Specification

Power Source: 12~16V AC – Use PT-1210N 12~24V DC, 200mA.
Communication: When called by tone, press TALK to reply, press door release button to release door and press OFF for standby.
Door Release: Contact rating 30V AC or DC, 1A.
Wiring: Door/Sub to master: 2-cond., overall shield.
Distance: Door/Sub to farthest master: 650’(22AWG) 1,600’(18AWG).
Wire Type: Aiphone #822202 or Aiphone# 821802.

Warranty
Aiphone warrants its products to be free from defects in material and workmanship under normal use and service for a period of one, two, or three years (depending on the product) after installation to the ultimate user. Proof-of-purchase is required to verify warranty period, otherwise warranty will be based on product lot code.
