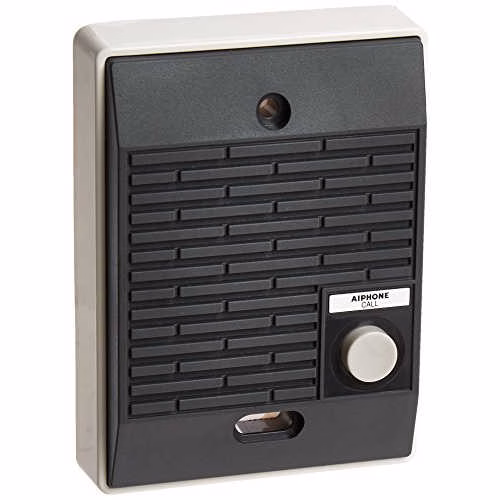

Aiphone LE D Door Station

$40.00

The LE-D is a surface mount, ABS plastic door station. It is weather resistant and mounts to a single gang electric box.

UPC: 790143124830
UNSPSC Code: 46171619
ASIN: B000CSR88W

45 in stock

Add to Wishlist
Add to Wishlist
SKU: LE D Category: Tags: , ,

Description

Aiphone LE D Door Station

Surface Mount Door Station – The Aiphone LE D Door Station is a surface mount, ABS plastic door station. It is weather resistant and mounts to a single gang electric box. The LE-D provides communication and call-in.

This is a door station only and requires:

  • Any of the master stations- LEM-1DL or LEM-1DLC.
  • Power Supply- PT-1210N

If you want a complete set then you can get the LEM-1DLS

Specification

Power Source: 12~16V AC – Use PT-1210N 12~24V DC, 200mA.

Communication: When called by tone, press TALK to reply, press door release button to release door and press OFF for standby.

Door Release: Contact rating 30V AC or DC, 1A.

Wiring: Door/Sub to master: 2-cond., overall shield.

Distance: Door/Sub to farthest master: 650’(22AWG) 1,600’(18AWG).

Wire Type: Aiphone #822202 or Aiphone# 821802.

Additional information

Weight 2.0 lbs
