Description

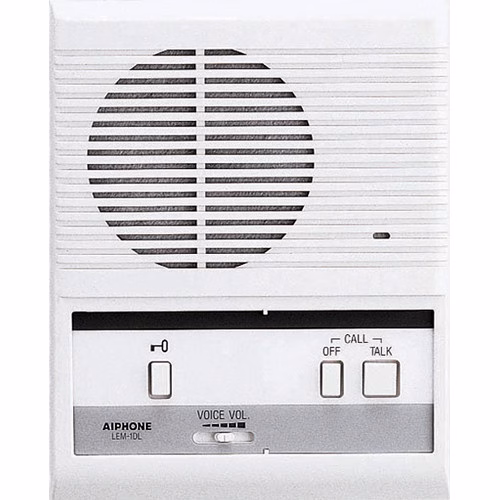

Aiphone LEM 1DL Master Station

Aiphone LEM 1DL Master Station single call surface/desk mount master station with built in door release relay.
This is a master station only and requires:

• Any of the the door station- Le-D, LE-FA, LE-SS/A, LE-SS-1G, LE-SSR, LE-SSV, LS-NVP/C, HID-SS, ICP-AB and ICP-BR.
• Power Supply- PT-1210N

If you want a complete set then you can get the LEM-1DLS

Specification

Power Source: 12~16V AC – Use PT-1210N 12~24V DC, 200mA.

Communication: When called by tone, press TALK to reply, press door release button to release door and press OFF for standby.

Door Release: Contact rating 30V AC or DC, 1A.

Wiring: Door/Sub to master: 2-cond., overall shield.

Distance: Door/Sub to farthest master: 650’(22AWG) 1,600’(18AWG).

Wire Type: Aiphone #822202 or Aiphone# 821802.

Warranty
Aiphone warrants its products to be free from defects in material and workmanship under normal use and service for a period of one, two, or three years (depending on the product) after installation to the ultimate user. Proof-of-purchase is required to verify warranty period, otherwise warranty will be based on product lot code.
