Sale!

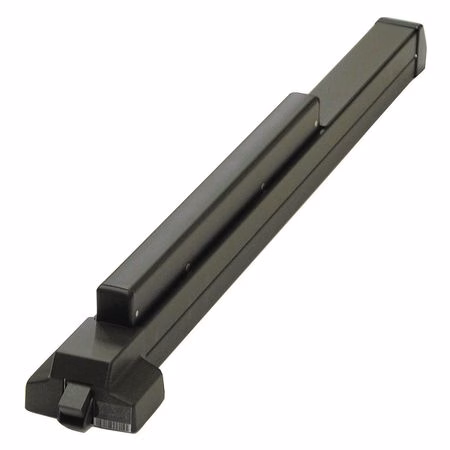

Von Duprin 22EO 3FT 695 Dark Bronze Rim Exit Device

Original price was: $646.00.Current price is: $398.71.

22 rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit
Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161*
cutouts. Fits door stiles as narrow as 3 ¹³|16″ (97mm)

Finish: 695 Dark Bronze
Size: 36″

Out of stock

SKU: 22EO 3FT 695 Categories: , , Tags: ,

Description

Von Duprin 22EO 3FT 689 Exit Device

Von Duprin 22EO 3FT 695 Exit Device for all types of single and double doors with mullion, UL listed for Panic Exit
Hardware. Devices are ANSI A156.3, 2001, Grade 1. Covers stock hollow metal doors with 161*
cutouts. Fits door stiles as narrow as 3 ¹³|16″ (97mm), see page 12. See opposite page for available
outside trim and device functions.

Not applicable with all strike and mullion combinations, consult factory

Specifications

Device Functions: Ships ready for all functions; EO, DT, NL, TP, K, L
Device Handing: Non-Handed
Device Lengths: 3’ (914mm)
Finishes: 695 Dark Bronze
Strikes: 299 Dull Black
Dogging Feature: Hex key dogging standard
Fasteners & Sex Bolts: (SNB) Includes 1 ³|4″ (19mm) – 2 ¹|4″ (57mm) Wood & Metal Doors Optional SNB available for device,
Latch Bolt: Deadlocking, ³|4″ (19mm) throw
Device Centerline: from 39 ¹³|16″ (1011mm) at center of device. Finished Floor 39 ¹¹|16″ (1008mm) with Mullion

Additional information

Weight 17 lbs
