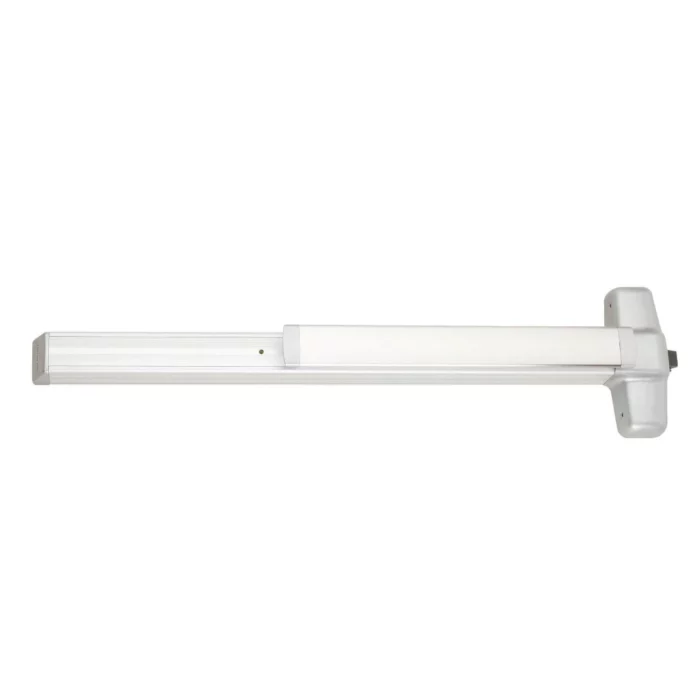

Von Duprin 99 EO 3 US28 Rim Exit Device

$1,238.00 $725.00

Von Duprin 99EO exit only device and no trim included

Manufacture Von Duprin
Model 99EO
Finish US28 Aluminum Base
Size For doors 28″ to 36″
Fire Rated No
Door Material For metal or wood doors
Door thickness 1-3/4″ – 2-1/4″
Certification UL, Miami Dade NOA



15 in stock

Description

Von Duprin 99 EO 3 US28 Rim Exit Device Satin Aluminum

Von Duprin 99 EO 3 US28 Rim Exit Device is the Von Duprin rim exit device 3 ft in US28 satin Aluminum. this 99 series has a grooved case and is UL listed, and Miami Dade NOA (Notice of Acceptance) certificate. This exit device can be installed on single or double doors with mullion.The rim device is non-handed except when the following device options are used: SD (Special Dogging), -2 (Double Cylinder) or SS (Signal Switch).

Can use all 99 rim exit standard trims

Specifications

Device Functions: Device ships EO/DT/NL. Field selectable. For TP,K,or L remove NL drive screw from device
Device Lengths: 3′ 2’4″ to 3’ (711mm to 914 mm) Door Size
Strikes: 299 – Dull Black
Dogging Feature: Hex key dogging standard
Fasteners & Sex Bolts (SNB): Includes 1 ³/₄” (19mm) – 2 ¹₄” (57mm) Wood & Metal Doors
Latch Bolt: Deadlocking, ³/₄” (19mm) throw
Device Centerline from Finished Floor: 39 ¹³/₁₆” (1011 mm),39 ¹¹/₁₆” (1008 mm) with Mullion
Center Case Dimensions: 8″ x 2 ³/₄” x 2 ³/₈” (203mm x 70mm x 60mm)
Mechanism Case Dimensions: 2 ¹/₄” x 2 ¹/₄” (57mm x 57mm)
Projection: Pushbar Neutral – 3 ¹³/₁₆” (97 mm),Pushbar Depressed – 3 ¹/₁₆” (78 mm)

Additional information

Weight 11 lbs
