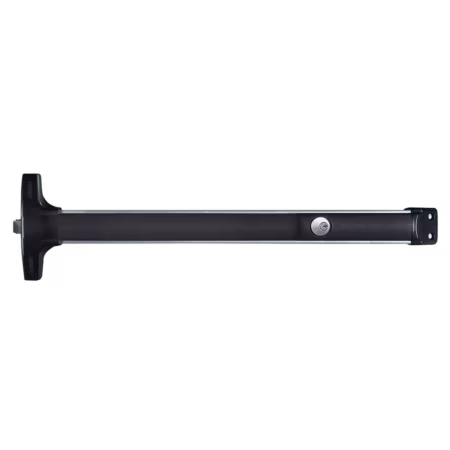

Detex V40 CD 628 99 36 Rim Exit Device

Original price was: $514.00.Current price is: $450.00.

Detex V40 With Cylinder Dogging for 36″ Doors

The V40 Series rim exit device is secure and durable panic and fire exit hardware at an economical price. It is designed for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

1 in stock (can be backordered)

SKU: V40-CD-628-99-36 Categories: , Tags: , ,


Detex V40 CD 628 99 36 Rim Exit Device

The Detex V40 CD 628 99 36 Rim Exit Device, this value series give you all the benefits of fire and safety features at economical price. The V40 also has many optional mechanical and electrical features that will comply with loss prevention department in retails stores to protect valuables, employees and customers safety. widely used world wide by many retail chain corporations, and has proven to be effective and reliable for many years.

The Detex V40 CD 628 99 36 Rim Exit Device has been one of the most recommended security and safety hardware by locksmith, security experts, building engineers and general contractors. The V40 is widely accepted as code compliant by building code enforcement because it has all the listed approval from UL-Listes,ADA,UBC 97 Standards,BHMA Certified,NFPA 81 & 101 for life safety, Miami Dade County No 12-0209.11 and California State Fire Marshall 4140-0127:105 and 3725-0127:108.

10 Year Mechanical/3 Year Electrical Limited Manufactures Warranty.


  • Priced to be the best value for durable and attractive loss prevention panic hardware.
  • Fast and easy installation
  • Minimal door prep saves time and money.
  • Fits almost any door in any décor.
  • Outside trims are easily changed or rekeyed without removing device from door.


  • Patented mounting plate and strike locator.
  • Covers a 161 door prep
  • Stainless steel, 3/4″ deadlocking Pullman-type latch bolt
  • Non-handed.
  • Field sizeable.
  • 1/8 turn hex key dogging.
  • Heavy-duty angled end cap.
  • Heavy-duty ribbed aluminum rail extrusion.
  • High impact ABS and anodized surfaces,
  • Withstands over 1400 pounds of static pull force for greater security.
  • Modular design accepts a variety of outside trims and functions.
  • Standard and narrow stile pull trims available.

Mechanical Options

  • CD – Cylinder Dogging
  • HD – Hex Dogging (Std.)
  • LD – Less Dogging
  • 36 – Fits 36″ Door Width (Std.)
  • 48 – Fits 48″ Door Width
  • F – 3-Hour Fire Rated
  • H – Hurricane Rated
  • For Narrow Stile that fits 2” Narrow
  • stile glass door see V40xNS
  • 99 – Surface Strike (Std.)
  • 98 – Semi Mortise Strike
  • Available with 628 Base Rail
  • Extrusion (Std.)
  • Available with 711 Base Rail
  • Extrusion

Electrical Options

  • Exit Alarm with 9 volt Battery (EB)
  • Weatherized Exit Alarm (EBxW)
  • Electric Dogging (ED) Delayed Egress (EE)
  • Exit Alarm Hardwired 24VDC (EH)
  • Hardwired 24VAC/DC Exit Alarm with Remote Signal (EHxR)
  • Electric Integration (EI)
  • Delayed Egress with Magnetic Lock (EM)
  • Electric Latch Retraction (ER)
  • Electric Switching (ES)
  • Request to Exit (EX)
  • Weatherized Request to Exit (EXxW)

Additional information

Weight 15.0 lbs
Dimensions 35 × 11 × 5 in
