Seco Alarm Enforcer SA-026Q Mini Timer Module


Enforcer miniature timer SA-026Q

1 in stock

SKU: sa-026q Categories: ,

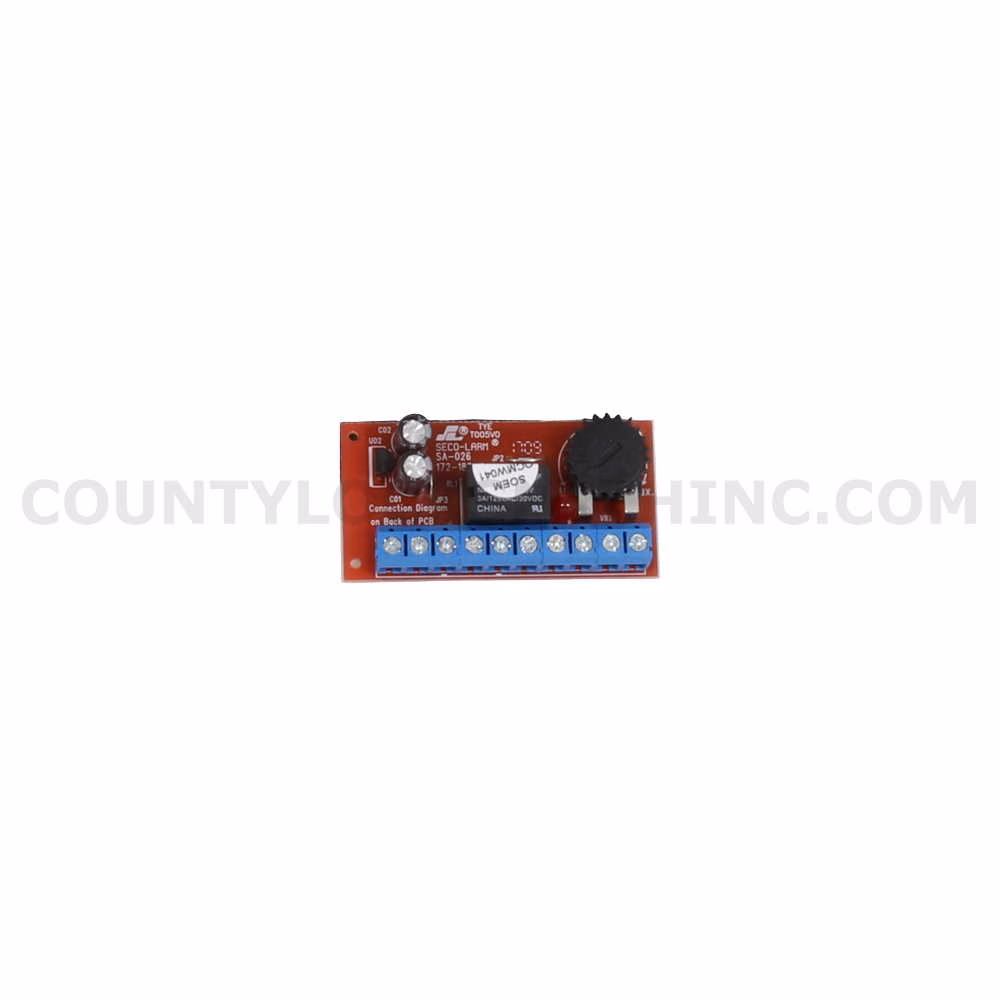

The Enforcer SA-026Q is a low voltage miniature timer module which operates on 12 – 24 vac/vdc. It can be used to modify the actiction time of a momentary switch for 1 ~ 180 seconds via a field-adjustable VR (variable resistor) rotary knob. It is ideal for electrical door strikes or electromagnetic locks that do not have built-in time delay function.


  • -Compact size 1-3/8″ x 2-3/16″ x 21/32″ (30 x 55x 16 mm).
  • -Operating voltage: 12 ~ 24 vac/vdc.
  • -Relay output: Form C (SPDT), via terminal block.
  • -Contact rating: 3 Amps @ 34 vdc
  • -Built in buzzer output (100mA @24vdc)
  • -Icludes double sided foam tape
  • -Current draw at 12vdc (max): Standby 5mA, active 30 mA


Additional information

Weight 1 lbs
