Rosslare AC215IP

$571.00

Rosslare AC215IP Controller for 2 door access control enclosure

  • Up to 30,000 users with access rights for every panel, across optional 2046 modular doors in a system.
  • 20,000, FIFO, history event log, when offline.
  • Full intelligent logic interconnection of inputs, outputs, readers, and more.
  • Onboard TCP/IP networking
  • Panel supports both 1-door (In/Out) and 2-door (In/Out, In/In and Out/Out) configurations.
  • Real-time clock keeps time for up to 2 weeks without power. No batteries to replace.
  • Cable cut tamper detection function for readers, and cover tamper detection for the enclosure
  • Pre-installed enclosure components:
      [icon type=”fa-caret-right” icontype=”fa”]Transformer, dual power supply/charger unit for panel and lock devices
      [icon type=”fa-caret-right” icontype=”fa”]Sounder unit
      [icon type=”fa-caret-right” icontype=”fa”]Space for a 7 AH SLA backup battery
      [icon type=”fa-caret-right” icontype=”fa”]Tamper switch

Keypads and readers sold separately.

Out of stock

Description

Rosslare AC215IP Controller

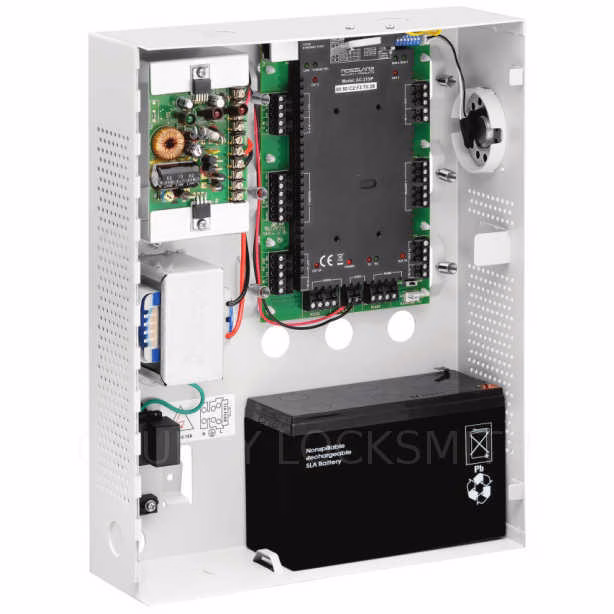

Rosslare AC215IP controller is suitable for applications with up to 30,000 users across a modular 2046 doors, allowing maximum flexibility for securing a growing enterprise. Each AC-215IP access control unit (ACU) supports two readers (In/Out) of various formats including standard Wiegand 26-Bit. Installations can also have one reader per door. The AC-215IP is ready for installation with a mountable and lockable metal enclosure integrated with a transformer, power supply/charger, sounder, and control board.

MAIN FEATURES
  • Up to 30,000 users with access rights for every panel, across optional 2046 modular doors in a system.
  • 20,000, FIFO, history event log, when offline.
  • Full intelligent logic interconnection of inputs, outputs, readers, and more.
  • Onboard TCP/IP networking
  • Panel supports both 1-door (In/Out) and 2-door (In/Out, In/In and Out/Out) configurations.
  • Real-time clock keeps time for up to 2 weeks without power. No batteries to replace.
  • Cable cut tamper detection function for readers, and cover tamper detection for the enclosure
  • Pre-installed enclosure components:
      Transformer, dual power supply/charger unit for panel and lock devices
      Sounder unit
      Space for a 7 AH SLA backup battery
      Tamper switch
AxTraxNG™ CLIENT/SERVER SOFTWARE
  • Based on SQL Express 2005 database
  • Each ACU subnet, consisting of up to 32 ACUs, can be connected to a PC running the AxTraxNG™ server PC software.
  • Enables management of user data, photo with custom fields, access rights, alarms, strike times, and door modes, from a central location.
  • Produces reports from acquired data, such as entry and exit times, and by alarm type with filters for user(s), location, and time.
  • Available in a large selection of languages.
SPECIFICATIONS
  • ACU Power Supply Voltage: 12 VDC, regulated from built-in PS-14 regulated power supply / charger module.
  • ACU Power Supply Max Current: Panel output: 0.5 A input current limitation (PS-14)
    Lock output: 1.5 A.
  • Relays: 4 fully programmable 5 A, N.O. and N.C. relay outputs.
  • Battery Charger: Battery Charger.
  • Maximum Current for Readers: 370 mA at 12 VDC.
OPERATIONAL SPECIFICATIONS
  • Capacity: 30,000 users.
  • History Event Log Size: 20,000 events
  • Inputs: 4 supervised, dual-resistor, 2 state end-of-line inputs, hi-impedance, active low 5 VDC.
  • Readers: Two reader ports, standards and non-standards protocols.
  • Connectivity: RS-485/232, dial-up (using MD-N33), onboard TCP/IP.
  • Networking: 32 units/subnet, 1023 subnets (Max 2046 doors) using AxTraxNG™ software.
  • Audio/Visual: Built-in sounder (Alarm, Chime, Bell), 11 on-board and 3 P.S. LEDs.
  • Time Zones and Groups: 128 multiple segment time zones, 64 holidays, 30,000 access groups.
  • Special Features: Interlock, first person delay, auto relock, scheduled outputs operation, 4 programmable site codes, Extended unlocked time, parking lot management, fully interconnectedness.
PHYSICAL SPECIFICATIONS
  • ACU Board Dimensions: 168 x 121 mm (6.61 x 4.76 in.)
  • Enclosure: Metal, locked 326 x 263 x 97 mm (12.8 x 10.4 x 3.82 in.)
  • Weight: 3.8 kg (8.4 lb)
ENVIRONMENTAL SPECIFICATIONS
  • Operating Environment: Indoor installation only
  • Operating Temperature: 0°C to 49°C (32°F to 120°F)
  • Operating Humidity: 0 to 85% (non-condensing)>
  • RFI Protection: 20 V/m up to 1000 MHz

Additional information

Weight 8.4 lbs
