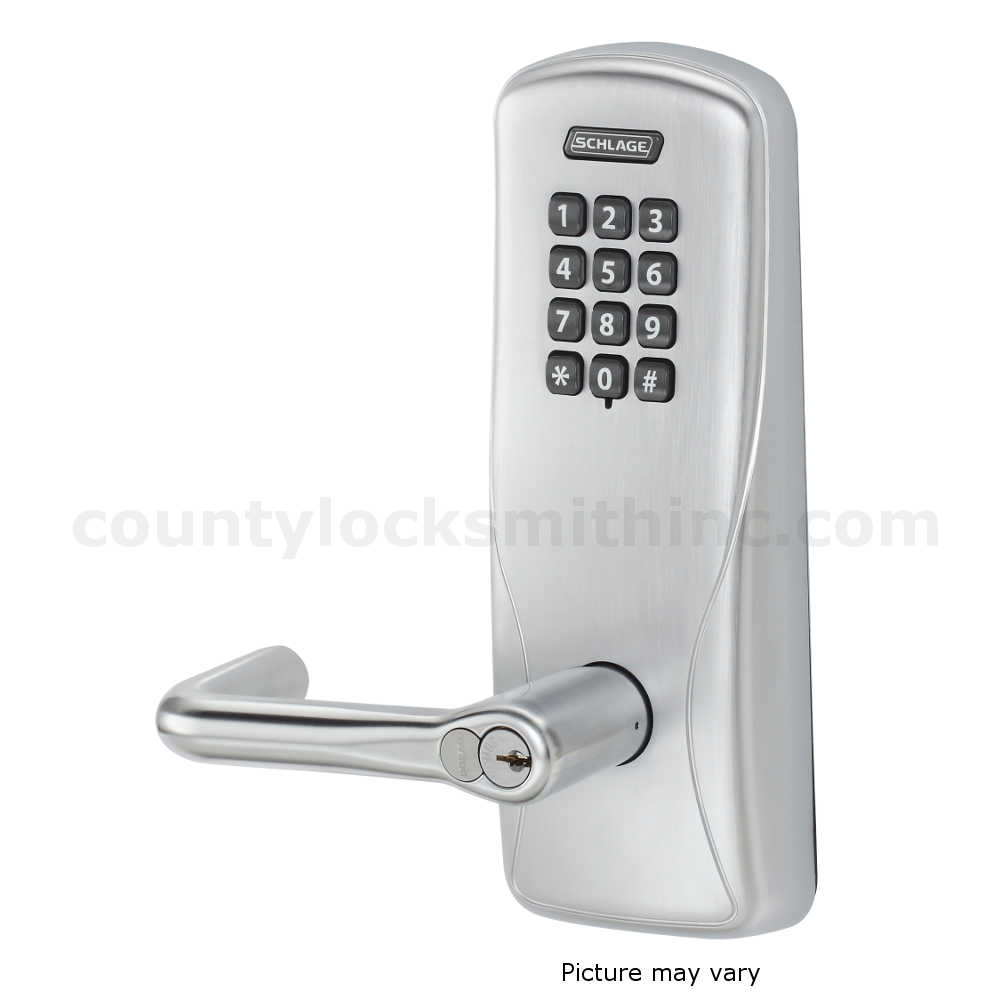

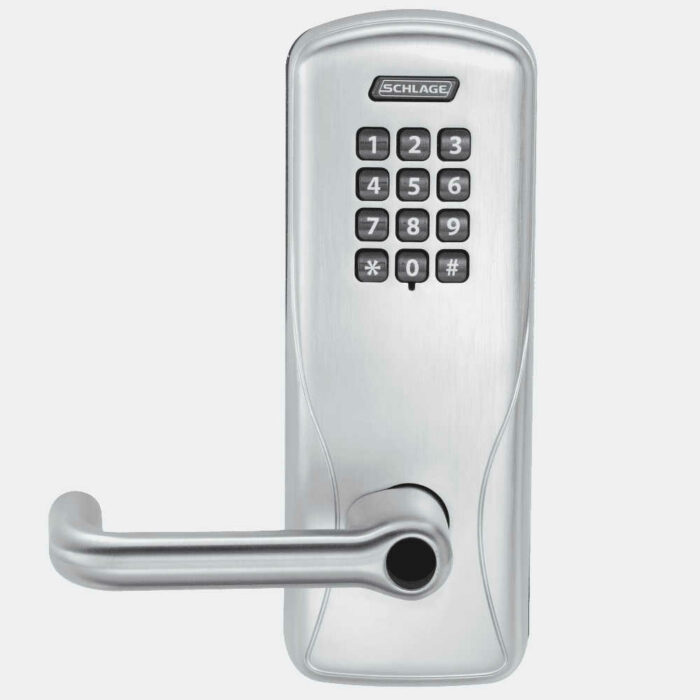

Schlage CO100CY70 KP TLR 626 PD

Original price was: $1,002.00.Current price is: $500.80.

Manufacure Schalage
Model CO100CY70 KP TLR 626 PD
Finish 626 Satin Chrome
LeverDesign TLR (tubular)
User 500 unique users
Key Schalge  standard SC1 override
Power 4 AA batteries


1 in stock


The CO-Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

The CO-100 from Schlage offers you many choices. Cylindrical, mortise, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware. Mechanical key override is standard and compatible with multiple cylinder types. The CO-Series is also compatible with many popular brands of exit devices. The CO-Series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO-Series is ANSI/BHMA A156.25 Grade 1 certified and UL 294 listed.

Features and Benefits

  • Manually Programmable
  • Up to 500 unique 3-6 digit PIN codes stored on the lock
  • ANSI/BHMA A156.25 Grade 1 certified and UL 294 listed
  • Classroom/Storeroom function and Office function available
  • Chassis options include cylindrical, mortise, and exit trim
  • Compatible with most major brands of key systems and exit devices
  • Normal, toggle, pass through, and freeze credential attributes available

CO-100 Electronic Lock Specifications

  • Users – 500
  • Credential Verification Time – ≤ 1 second
  • Visual/Audible Communications – Tri-colored LED’s & audible indicators
  • Power Supply – 4AA batteries (standard off the shelf, included)
  • Battery Life – Up to 2 yrs with 4AA batteries
  • Operating Temperature – Exterior – -31° to 151°F (-35° to 66°C)
  • Operating Temperature – Interior – 32° to 120°F (0° to 49°C) due to battery

Additional information

Weight 10.25 lbs
Dimensions 16 × 12 × 5 in
