Dictator Door Closer V1600 Series for Walk-in Coolers

$110.00

Dictator door closer V1600 for smooth closing with adjustable hydraulics. . We stock with standard hook 1009 for flush doors (-4 to +14 mm)

Door types Overlapping, flush and recessed doors
Closing force 5 to 18 lbs (20 to 115N) adjustable
Damping characteristics Progressive, adjustable
Damping medium Temperature independent silicone oil
Components in box Door closer, hook and screws
Material Steel or stainless steel
Finish Bright Chrome (standard stock), Satin chrome, Stainless steel, Other color coated in RAL
Hook 1009 for flush doors (-4 to +14 mm) standard stock

1 in stock

SKU: V1600-BCH-H1009-CYL50N Category:

Description

DICTATOR hydraulic door closer’s have a progressive braking action, so they damp and slow the door down gently and smoothly, they pull the door into the latch firmly and keep the door closed reliably.

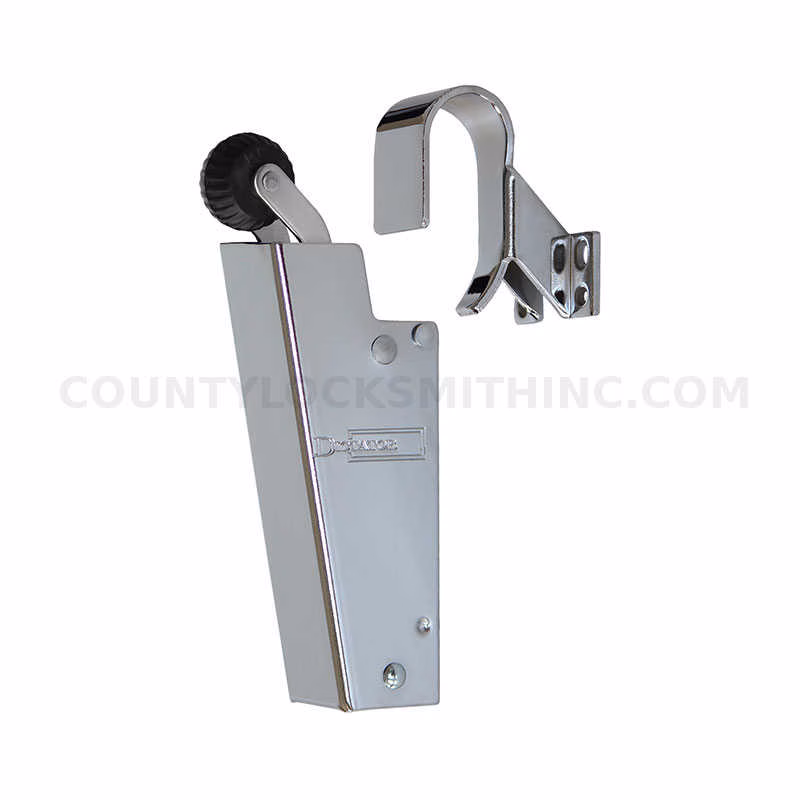

The type V 1600 looks small but its casing and cylinder are made of solid steel (no tube). They can even be used on large doors of Walk-In Coolers and Freezers. The chrome plated case, concealed cylinder and invisible fixing combine to give an attractive design. It is also available in weather and humidity resistant stainless steel.

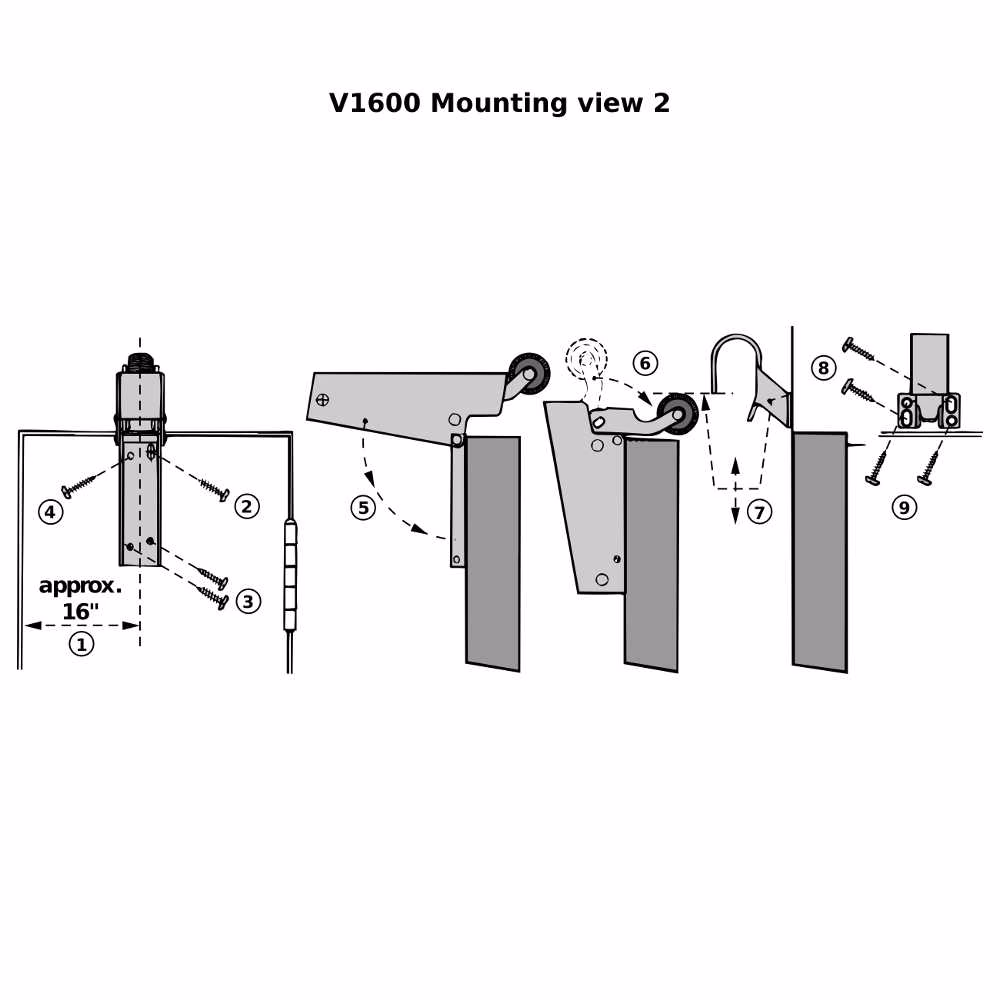

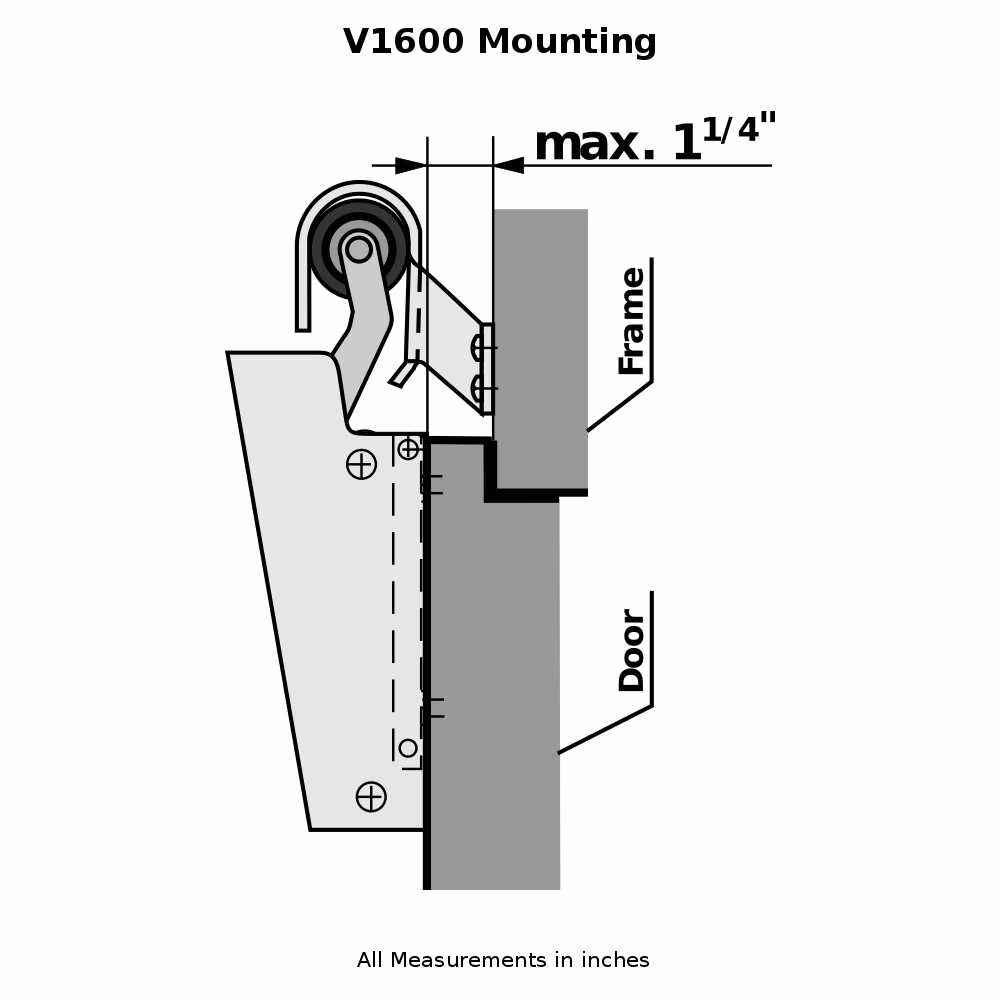

A special feature is the easy fixing. An integral patent mounting plate is screwed to the door and the body of the damper is simply hinged down and clipped into position. The door closer is mounted on the face of the door and is suitable both for right and left hand doors, usually in about the middle of the upper edge of the door.

DICTATOR Door Dampers V1600 are classified as Miscellaneous Fire Door Accessories and our production continuously monitored by Underwriters Laboratories, Inc. (File No. R20417).

Additional information

Weight 2.12 lbs

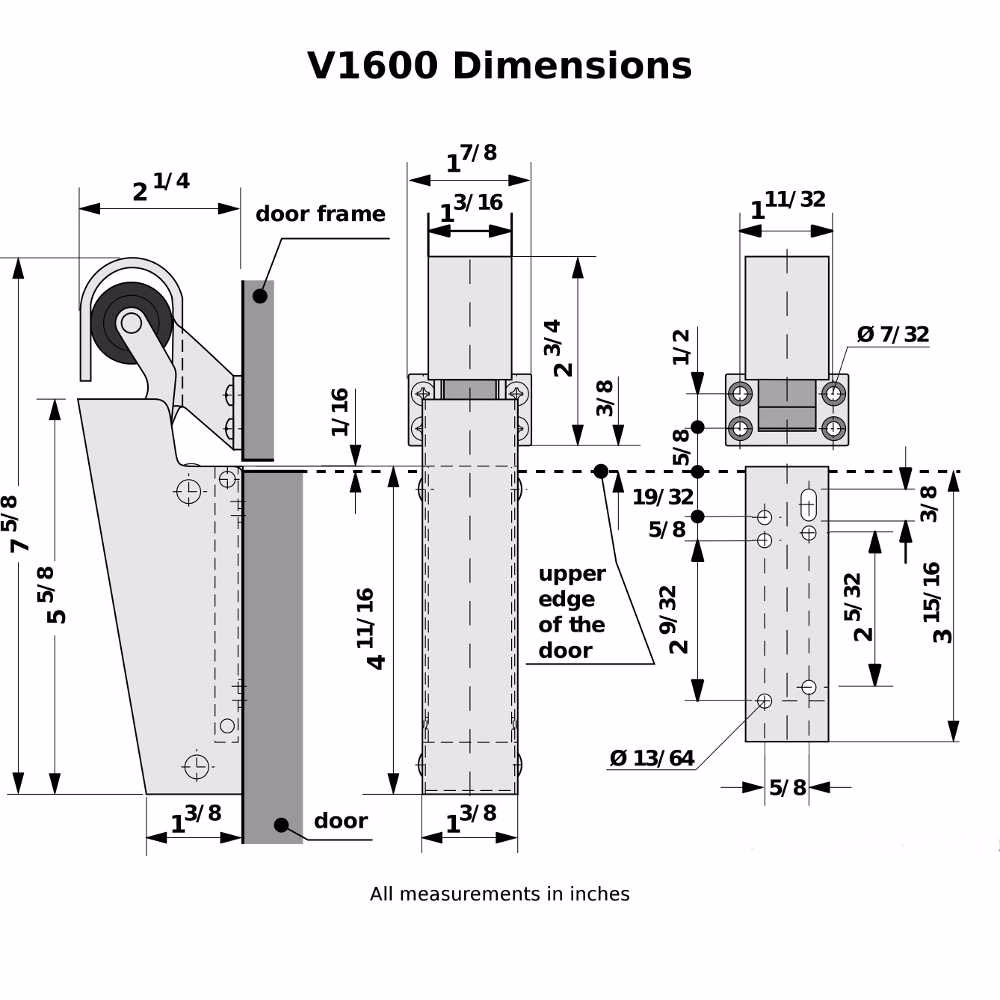

Dimensions 6 × 6 × 8 in
