MS1847 06 630

$55.00

Part#: MS1847 06 630
Hub angle: Vertical degree
Finish: 630 Stainless steel
Function: Deadlock
Face Shape: Radius
Manufacture: Adams Rite

2 in stock

SKU: MS1847 06 630 Categories: ,

Description

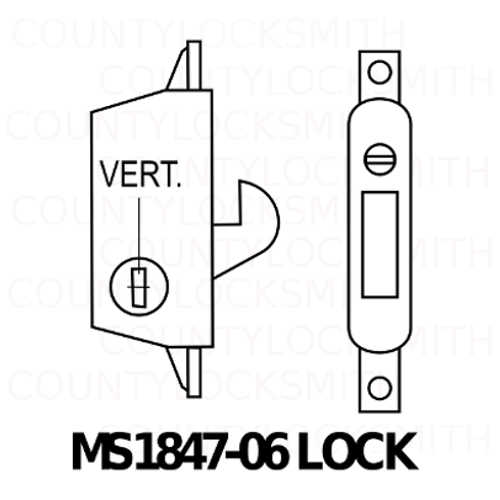

MS1847 06 630

A compact lock designed to fit within very narrow sliding door stiles without compromising the high degree of security these doors need. The sturdy stainless steel bolt has two important features not usually found in sliding door hardware. First, it is adjustable: a full 3/16″ lengthening or shortening of bolt projection is possible by turning an exposed screw in the face of the lock. This can compensate for considerable misalignment between door and jamb. Second, the MS1847 bolt is self-protecting: if the door is closed with the bolt in the locked position, the bolt will retract immediately on contact with the jamb, thus preventing damage or accidental lock-out.

Function

A compact lock designed to fit within very narrow sliding door stiles without compromising the high degree of security these doors need. The sturdy stainless steel bolt has two important features not usually found in sliding door hardware. First, it is adjustable: a full 3/16” lengthening or shortening of bolt projection is possible by turning an exposed screw in the face of the lock. This can compensate for considerable misalignment between door and jamb. Second, the MS1847 bolt is self-protecting: if the door is closed with the bolt in the locked position, the bolt will retract immediately on contact with the jamb, thus preventing damage or accidental lock-out.

Operation

Can be operated by a standard cylinder, so the glass door may be keyed-in with other types of doors. Three hub slot positions allow installation even where jamb and stile design provides severely limited turn clearance. See dash number table on catalog page.

Latch Version

The same stainless steel hookbolt, but spring-loaded for automatic latching, is provided by the MS1847-08, MS1847-11, MS1847-13, and MS1847-16. All dimensions and available accessories for the MS1847 deadlocks also apply to MS1847 deadlatches.

Case: Measures 1/2” x 3-3/16” x 1-1/8”. Stainless steel (specify MS1848 for zinc plated steel case and face).

Anti-Lift Bolt: Three-ply laminated stainless steel. Designed to withstand approximately one-half ton force, either horizontal or vertical. Anti-lift bolt stops both door-from-jamb pry bar attacks and attempts to lift the door from its track.

Face: Rectangular or full radiused ends. See dash number table on catalog page.

Standard Package: Case-packed with machines screws for mounting. Shipping weight: 1/3 lb.

Additional information

Weight 1 lbs
