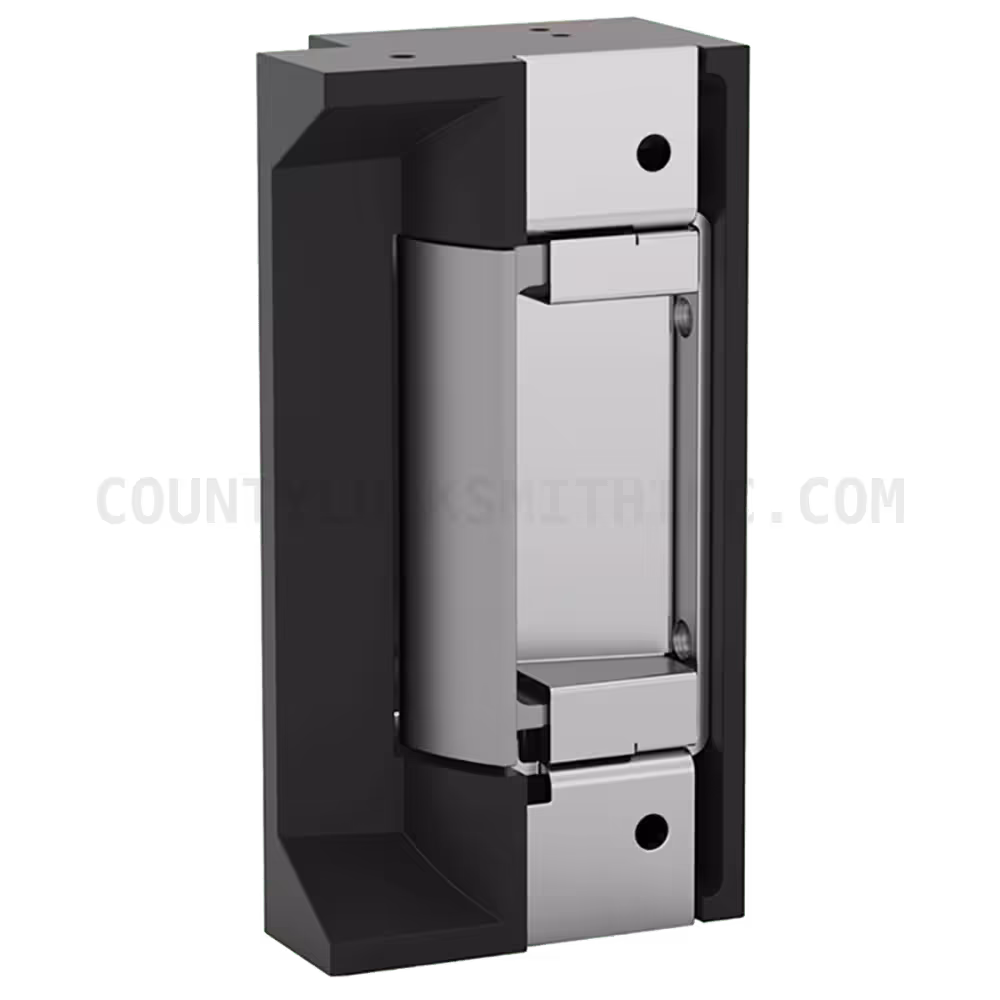

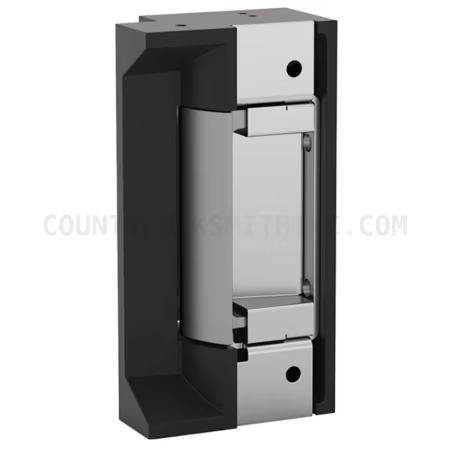

HES 5000C Grade 1 Low Profile Solution for Cylindrical Locks
Compact and high performance electric strike designed for low profile openings Where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8” throw.
Features
Tamper resistant
Static strength 1,500 lbs
Dynamic strength 70 ft-lbs.
Endurance 1,000,000 cycles
Field selectable fail secure/ fail safe
Non-handed
Internally mounted solenoid
Accommodates 1/2” – 5/8” latchbolt (5/8” with 1/8” door gap)
Strike body depth 1-1/16”
Plug-in connector
Trim enhancer included
SecuriCare five-year, no-fault, no questions asked warranty (Addition of SMART Pac® III extends the warranty to 10 years)
Certifications
ANSI/BHMA A156.31, Grade 1
RoHS Compliant
UL 294 Listed
UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use
Specifications
Frame Application
Metal frame
Wood frame
Electrical
Dual voltage 12/24 VDC/VAC
240 mA at 12 VDC
120 mA at 24 VDC
PoE friendly
Additional information
Weight
1 lbs
Dimensions
10.5 × 3.38 × 2.25 in
